150mm/6" Inflatable PVC Sealing Bags w/ Schrader Valve

The answer to a variety of pipe sealing problems.
Range available for pipe diameters from 25mm to 450mm.
Easily inflated for trouble free pipe sealing.
Ideal for use in areas where access is smaller than the test diameter.
Extension hose available to facilitate remote sealing.

PVC Bags are supplied with 1.2mtr or 3mtr hose as standard, but can be manufactured with longer hose to facilitate remote sealing when required.

To create an air tight seal in pipes for a back pressure of 4"/100mm U Gauge, as requested by British Standards.

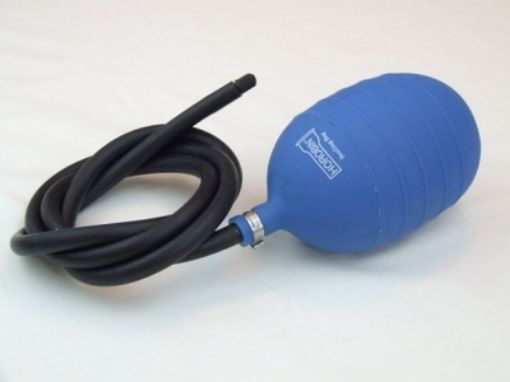

PVC AIR BAGS ARE INFLATED WITH A HAND PUMP HOROBIN CODE 84011

Part No.	Pipe Size Internal Nominal Diameter		Will Fit Pipes With Internal Diameter		Minimum Insertion into Pipe	Overall length	Contact length	Diameter of waterway	Maximum allowable back pressure	Approx. Weight
Part No.	Metric	Imperial	Minimum	Maximum	Minimum Insertion into Pipe	Overall length	Contact length	Diameter of waterway	Maximum allowable back pressure	Approx. Weight
83005	40mm	1 1/2	30mm	45mm			100mm		10p.s.i.	0.20kgs
83011	50mm	2	45mm	60mm			100mm		10p.s.i.	0.22kg
83021	75mm	3	70mm	85mm			80mm		10p.s.i.	0.24kg
83031	100mm	4	90mm	110mm			80mm		7p.s.i.	0.3kg
83051	150mm	6	140mm	160mm			100mm		7p.s.i.	0.7kg
83061	200mm>300mm	8	200mm	300mm			200mm		5p.s.i.	1.15kgs
83071	350mm>450mm	14	350mm	450mm			300mm		2p.s.i.	2.4kg
