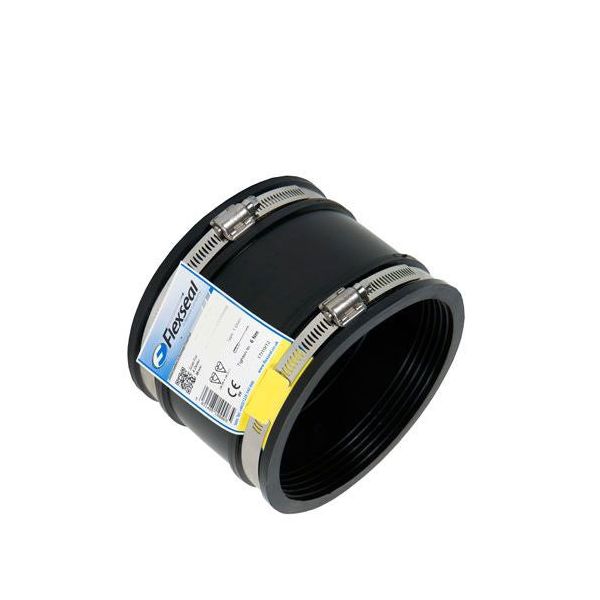

Flexseal Drain Couplings are used to connect, repair and maintain drainage systems and other small diameter non-pressure
pipelines. Available to suit any pipe material up to 275mm outside diameter, Drain Couplings are designed for use in
drainage systems where the resistance to earth loads (usually provided by a Standard Coupling) is not required.
Flexseal Drain Couplings comprise a moulded EPDM sleeve which is attached using Grade 1.4301 (304) wormdrive stainless
steel clamping bands at either end.
Flexseal can also supply the product with nitrile sleeves for use with effluent which may be contaminated with
hydrocarbons. Couplings are also available with Grade 1.4401 (316) stainless steel for improved corrosion protection. Like
all unshielded couplings, Flexseal Drain Couplings do not meet with WIS-4-41-01 specifications. For WIS-4-41-01
applications a Flexseal Standard Coupling (SC) should be used.
Applications
• Can be used to connect plain ended pipes
• Repair of existing pipe systems by replacing short sections of pipe
• Connects short and cut lengths of pipe
• An inexpensive option when a shielded coupling is not required
Benefits
• Low cost solution to damaged drainage systems
• Easy to install
• Efficient, airtight and watertight connection
Product specification for DC
Product Code | DC |
Description | Flexseal Drain Coupling |
Material | EPDM Rubber / Nitrile Rubber |
Steel | 1.4301 (304) Stainless Steel or 1.4401 (316) Stainless Steel |
Pressure Rating | 0.6bar, 8.70psi / -0.3 Vacuum |
Temperature Range | -50°c to 150°c |
Tightening Torque | 6Nm |
Standards | EN295-4, EN681-1, CE |
Jetting Resistance | 120 bar |
Common Applications
DC165
• 160mm PVCu
• 150mm CAST IRON (SMU/ENSIGN/SML)
• 150mm STAINLESS STEEL
• 160mm POLYETHYLENE
Product Range
Reference No. | Size (mm) | Width (mm) | Thickness (mm) |
DC165 | 150 - 165 | 120 | 7 |
