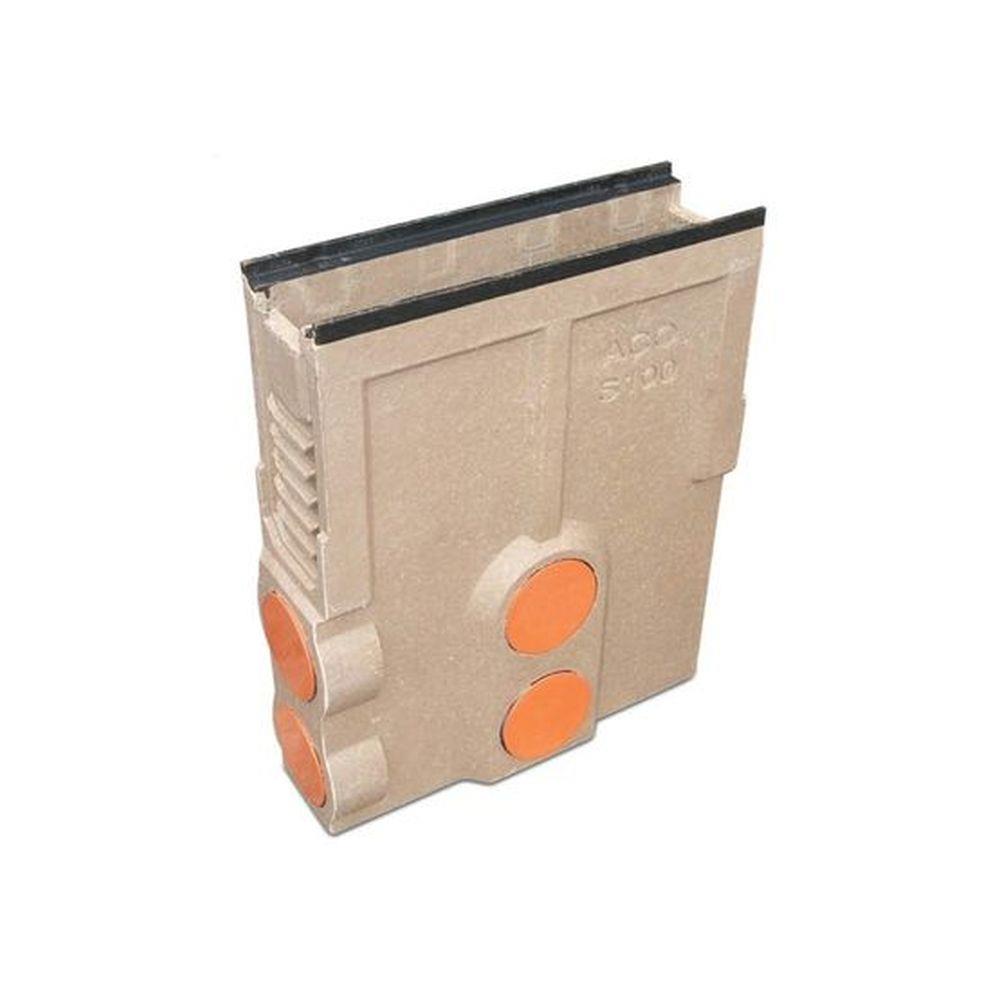

MultiDrain M100D Universal Sump With Galv Rail and Plastic Silt Bucket 500mm

Dimensions of sump unit

Length: 500mm
Width (Overall): 135mm
Depth (Overall): 635mm
Invert 1: 350mm
Invert 2: 615mm
Weight: 32.8kg

The ACO sump unit is part of the ACO MultiDrain™ M100D channels, manufactured from Vienite®, ACO’s sustainable high strength material, which provides high chemical resistance. The channels are available in constant depth, sloping depth and shallow depth units to complement the ACO sump. ACO MultiDrain™ M100D channels listed below are provided with integral galvanised steel protective edge rails. For enhanced durability these rails are manufactured from UltraSTEEL™, a unique material that has improved strength over plain steel.

The added benefit of UltraSTEEL™ is that its greater surface area improves the bond between rail and adjacent material where a sealed system is required.
