Please Note Grating Is Not Supplied With This Product
Dimensions
Length: 1000mm
Width (Overall): 135mm
Depth (Overall): 150mm
Invert: 130mm
Invert Type: 1/3
Weight: 11kg

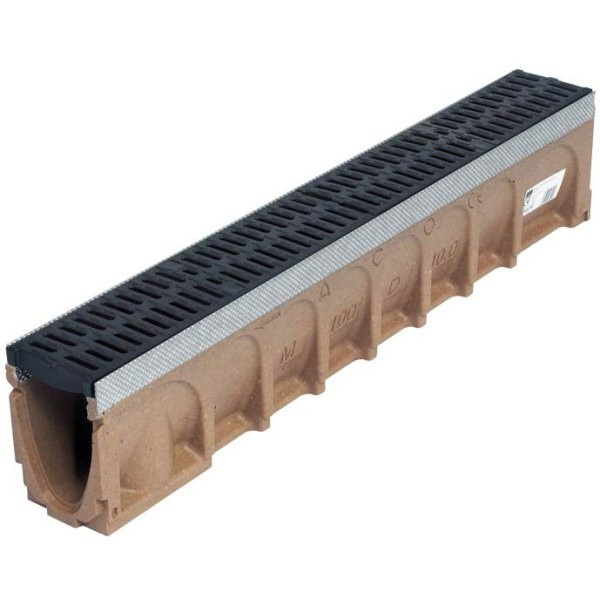

ACO MultiDrain™ M100D channels are manufactured from Vienite®, ACO’s sustainable high strength material, which provides high chemical resistance. The channels are available in constant depth, sloping depth and shallow depth units. ACO MultiDrain™ M100D channels listed below are provided with integral galvanised steel protective edge rails. For enhanced durability these rails are manufactured from UltraSTEEL™, a unique material that has improved strength over plain steel.
The added benefit of UltraSTEEL™ is that its greater surface area improves the bond between rail and adjacent material where a sealed system is required.
Dimensions
Length |
1000mm |
Depth |
150mm |
Width |
135mm |
Details
Material |
Concrete |
Weight Class |
D400 |
