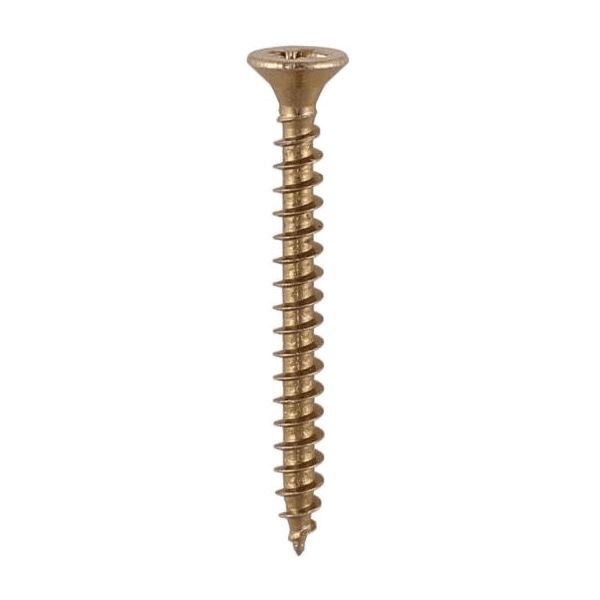

Classic Screw PZ2 CSK - ZYP 4.0 x 20mm 200 Pcs

SKU: CSS6192-0196

Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power. NOTE: Sharp point only.

Availability: In stock

£2.13

Qty:

i h

Overview
Contact Us

Product Code: 40020CLAF

Pack Type: Box

Pack Quantity: 200 Pieces

Barcode: 5055017507177

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

Product Specifications

Lubrication	Gleitmo
L (mm)	20
Point Type	25° Sharp
Head Type	Double Countersunk
Pack Qty	200
Substrates	Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
Pack Type	Box
Thread Type	Single Coarse 40°
Material	Carbon Steel
Corrosion Rating (1-5)	2 - Occasionally damp/wet, rural and sheltered areas
Inner Thread Ø d1 (mm)	2.5
Packs per Carton	75
MOQ	1
Size (mm)	4.0 x 20
Finish	Zinc & Yellow
Recess Type	Pozi
Thread L (mm)	15
MOQ Increment	1
Driver Bit Size	PZ2
Thread Ø (mm)	4
Feature 4	Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
Feature 2	Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
Feature 5	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Feature 1	Double countersunk reduces the likelihood of head shear and assists completion of countersinking
Brand	TIMCO
Feature 3	40° deep single thread to provide a secure fixing with high pull-out resistance
Thread Coverage	Fully Threaded
