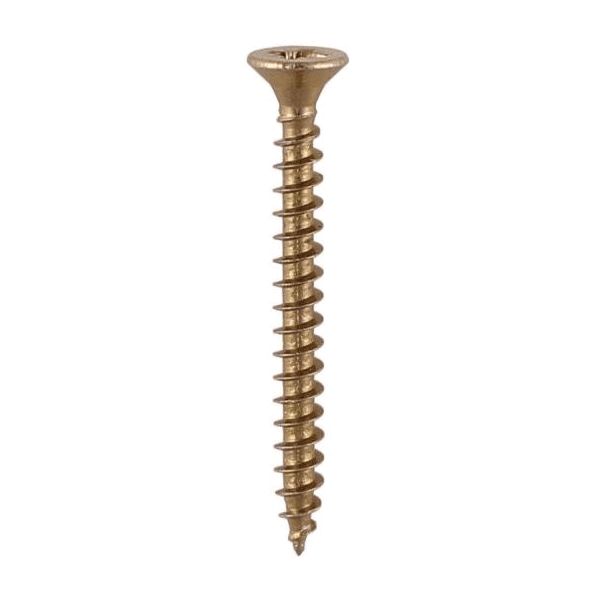

    Classic Screw PZ2 CSK - ZYP 4.0 x 40mm 200 Pcs

    SKU: CSS67-00181
    Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power.
    Availability: Please contact us for the stock availability.
    €3.12
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Product Code: 40040CLAF
    Pack Type: Box
    Pack Quantity: 200 Pieces
    Barcode: 5055017507214

    • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
    • Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
    • 40° deep single thread to provide a secure fixing with high pull-out resistance
    • Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
    • Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
    • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length



    Product Specifications

    MOQ Increment 1
    Inner Thread Ø d1 (mm) 2.5
    Material Carbon Steel
    Thread Ø (mm) 4
    Corrosion Rating (1-5) 2 - Occasionally damp/wet, rural and sheltered areas
    MOQ 1
    Finish Zinc & Yellow
    L (mm) 40
    Size (mm) 4.0 x 40
    Packs per Carton 50
    Driver Bit Size PZ2
    Lubrication Gleitmo
    Pack Qty 200
    Head Type Double Countersunk
    Recess Type Pozi
    Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
    Point Type 25° Sharp with Single Slash
    Thread L (mm) 35
    Thread Type Single Coarse 40°
    Pack Type Box
    Feature 1 Double countersunk reduces the likelihood of head shear and assists completion of countersinking
    Brand TIMCO
    Feature 6 All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
    Feature 4 Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
    Feature 3 40° deep single thread to provide a secure fixing with high pull-out resistance
    Feature 2 Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
    Feature 5 Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
    Thread Coverage Fully Threaded
    *
    *
    *
    *
