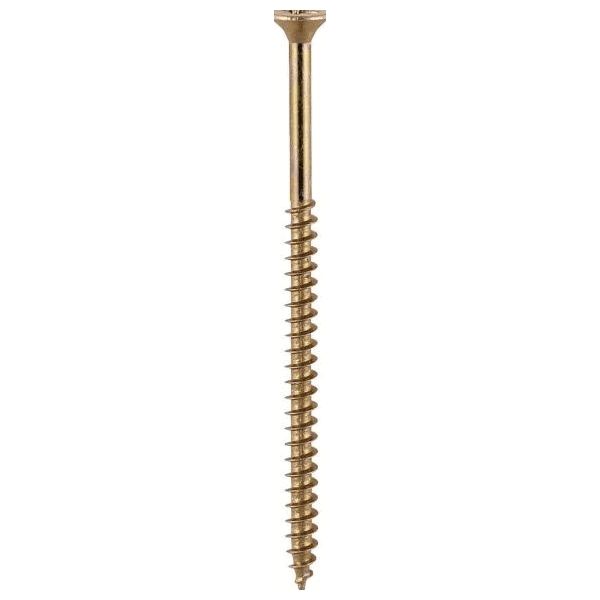

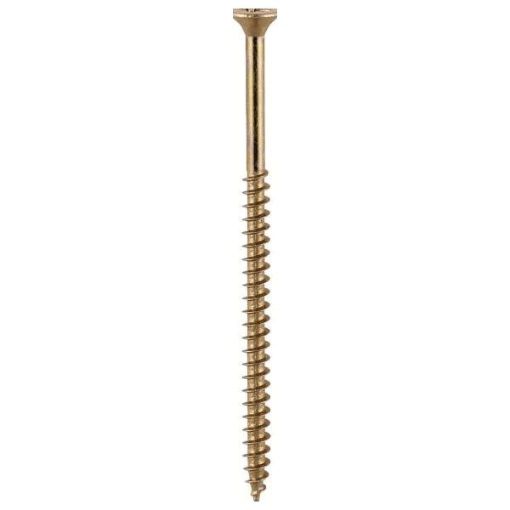

Classic Screw PZ2 CSK - ZYP 5.0 x 100 100 PCS

Manufacturers: T.I.Midwood & Co Ltd , T.I.Midwood & Co Ltd

SKU: CSS6192-0232

Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power.

Availability: In stock

£7.78

Qty:

i h

Overview
Contact Us

Product Code: 50100CLAF

Pack Type: Box

Pack Quantity: 100 Pieces

Barcode: 5055017507504

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
• Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

Product Specifications

Pack Type	Box
Material	Carbon Steel
Corrosion Rating (1-5)	2 - Occasionally damp/wet, rural and sheltered areas
MOQ	1
Finish	Zinc & Yellow
Thread L (mm)	70
Recess Type	Pozi
MOQ Increment	1
Thread Ø (mm)	5
Driver Bit Size	PZ2
L (mm)	100
Lubrication	Gleitmo
Size (mm)	5.0 x 100
Packs per Carton	15
Substrates	Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
Point Type	25° Sharp with Single Slash
Thread Type	Single Coarse 40°
Inner Thread Ø d1 (mm)	3.1
Head Type	Double Countersunk
Pack Qty	100
Feature 6	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Feature 4	Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
Feature 5	Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
Feature 1	Double countersunk reduces the likelihood of head shear and assists completion of countersinking
Feature 2	Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
Brand	TIMCO
Feature 3	40° deep single thread to provide a secure fixing with high pull-out resistance
Thread Coverage	Partially Threaded
