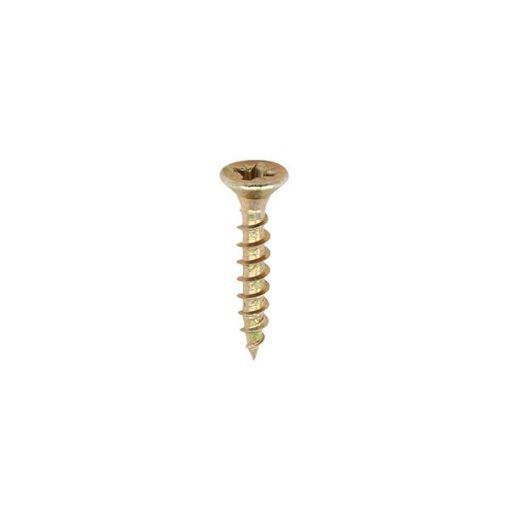

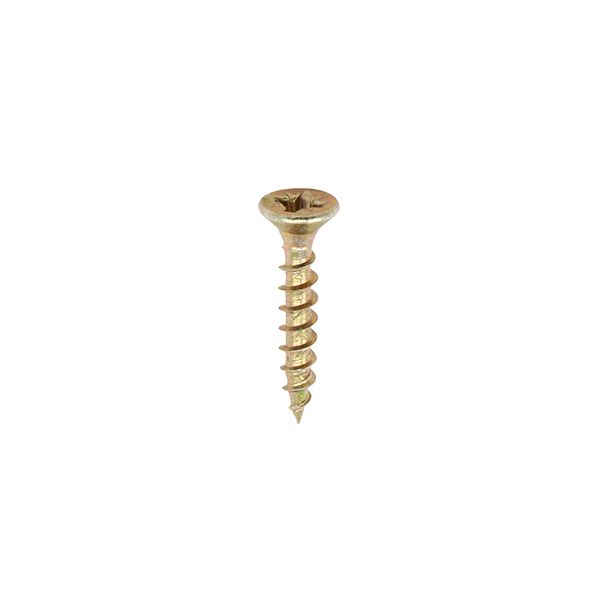

Classic Screw PZ2 CSK - ZYP 5.0 x 20 200 PCS

SKU: CSS6192-0219

Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power. NOTE: Sharp point only.

Availability: In stock

£3.70

Qty:

i h

Overview
Contact Us

Product Code: 50020CLAF

Pack Type: Box

Pack Quantity: 200 Pieces

Barcode: 5055017507382

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

Product Specifications

Material	Carbon Steel
Recess Type	Pozi
Corrosion Rating (1-5)	2 - Occasionally damp/wet, rural and sheltered areas
Finish	Zinc & Yellow
Thread Ø (mm)	5
Driver Bit Size	PZ2
Thread Type	Single Coarse 40°
Inner Thread Ø d1 (mm)	3.1
Pack Qty	200
Point Type	25° Sharp
Size (mm)	5.0 x 20
MOQ Increment	1
Thread L (mm)	15
Packs per Carton	50
Pack Type	Box
Substrates	Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
L (mm)	20
Head Type	Double Countersunk
MOQ	1
Lubrication	Gleitmo
Feature 1	Double countersunk reduces the likelihood of head shear and assists completion of countersinking
Feature 4	Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
Feature 2	Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
Feature 3	40° deep single thread to provide a secure fixing with high pull-out resistance
Brand	TIMCO
Feature 5	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Thread Coverage	Fully Threaded
