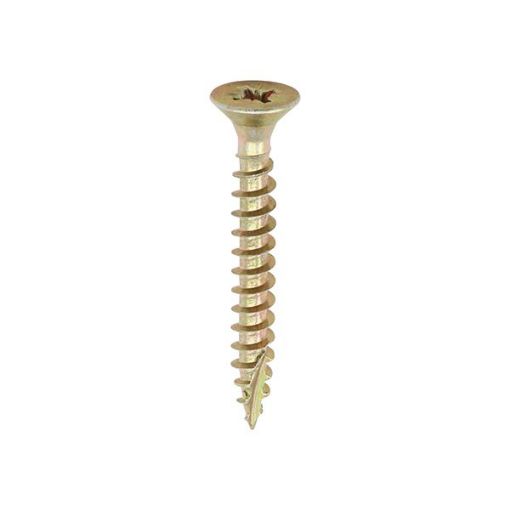

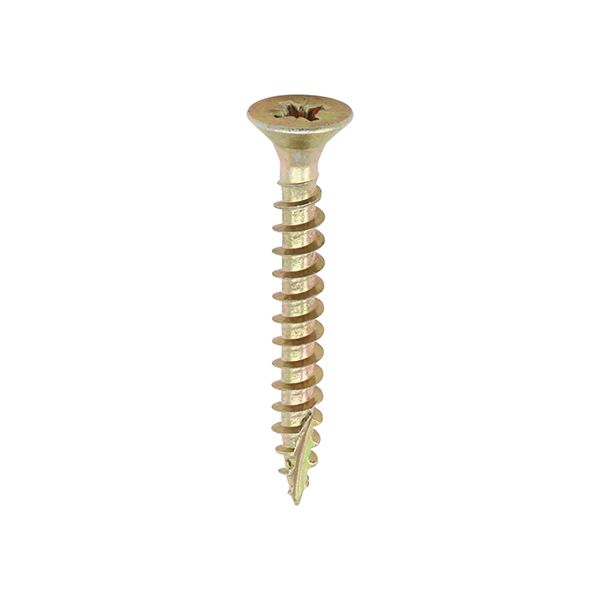

    Classic Screw PZ2 CSK - ZYP 5.0 x 60 200 PCS

    Manufacturer: T.I.Midwood & Co Ltd
    SKU: CSS67-00208
    Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power.
    Availability: In stock
    £6.55
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Product Code: 50060CLAF
    Pack Type: Box
    Pack Quantity: 200 Pieces
    Barcode: 5055017507467

    • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
    • Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
    • 40° deep single thread to provide a secure fixing with high pull-out resistance
    • Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
    • Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
    • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

    Product Specifications

    Recess Type Pozi
    Thread L (mm) 55
    L (mm) 60
    Pack Qty 200
    Lubrication Gleitmo
    Substrates Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
    Driver Bit Size PZ2
    Corrosion Rating (1-5) 2 - Occasionally damp/wet, rural and sheltered areas
    Inner Thread Ø d1 (mm) 3.1
    Thread Type Single Coarse 40°
    Point Type 25° Sharp with Single Slash
    Thread Ø (mm) 5
    Finish Zinc & Yellow
    MOQ Increment 1
    MOQ 1
    Pack Type Box
    Packs per Carton 16
    Material Carbon Steel
    Size (mm) 5.0 x 60
    Head Type Double Countersunk
    Feature 5 Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
    Feature 4 Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
    Feature 3 40° deep single thread to provide a secure fixing with high pull-out resistance
    Feature 2 Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
    Feature 1 Double countersunk reduces the likelihood of head shear and assists completion of countersinking
    Feature 6 All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
    Brand TIMCO
    Thread Coverage Fully Threaded
    *
    *
    *
    *
