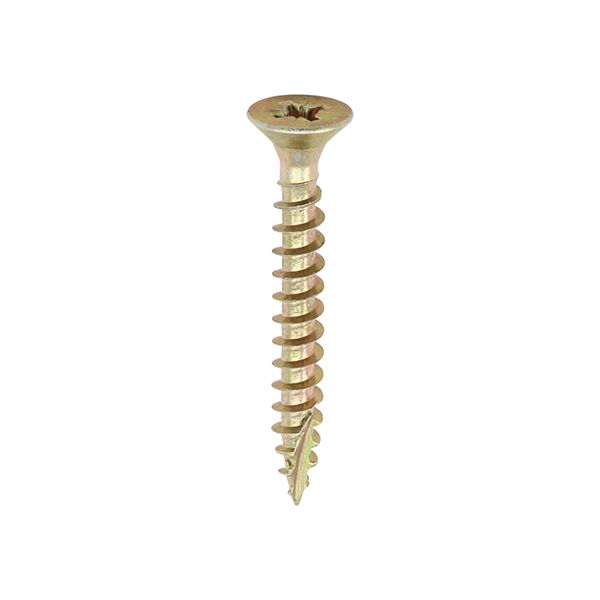

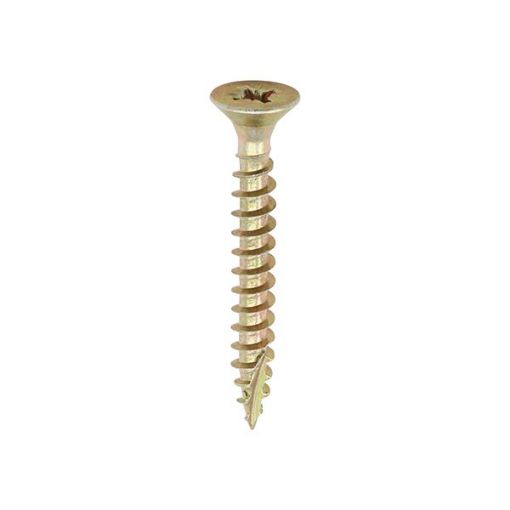

    Classic Screw PZ2 CSK - ZYP 5.0 x 70 200 PCS

    SKU: CSS6192-0228
    Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power.
    Availability: Please contact us for the stock availability.
    £7.48
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Product Code: 50070CLAF
    Pack Type: Box
    Pack Quantity: 200 Pieces
    Barcode: 5055017507474

    • Double countersunk reduces the likelihood of head shear and assists completion of countersinking
    • Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
    • 40° deep single thread to provide a secure fixing with high pull-out resistance
    • Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
    • Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
    • All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length


    Product Specifications

    Packs per Carton16
    MOQ1
    Point Type25° Sharp with Single Slash
    SubstratesHardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
    Thread L (mm)65
    Inner Thread Ø d1 (mm)3.1
    MaterialCarbon Steel
    Head TypeDouble Countersunk
    Pack Qty200
    Thread TypeSingle Coarse 40°
    Size (mm)5.0 x 70
    Pack TypeBox
    Driver Bit SizePZ2
    Recess TypePozi
    Corrosion Rating (1-5)2 - Occasionally damp/wet, rural and sheltered areas
    MOQ Increment1
    FinishZinc & Yellow
    L (mm)70
    LubricationGleitmo
    Thread Ø (mm)5
    Feature 1Double countersunk reduces the likelihood of head shear and assists completion of countersinking
    Feature 4Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
    Feature 5Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
    Feature 2Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
    Feature 340° deep single thread to provide a secure fixing with high pull-out resistance
    BrandTIMCO
    Feature 6All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
    Thread CoverageFully Threaded
    *
    *
    *
    *
