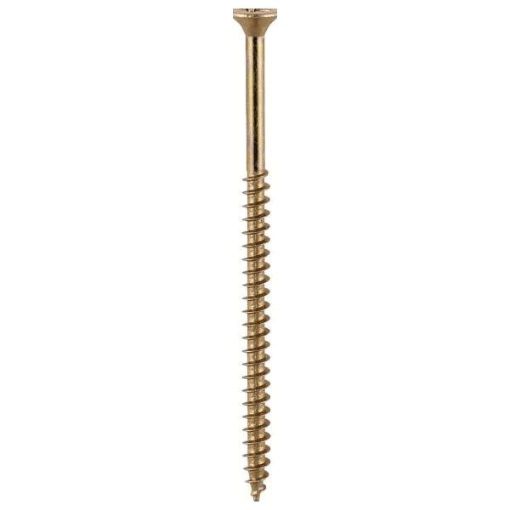

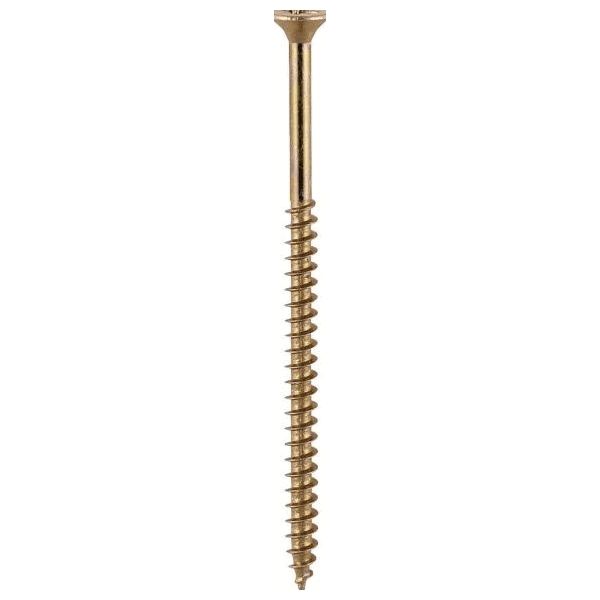

Classic Screw PZ2 CSK - ZYP 5.0 x 80 200 PCS

Manufacturers: T.I.Midwood & Co Ltd , T.I.Midwood & Co Ltd

SKU: CSS6192-0230

Specifically designed as a multi-purpose product, the 25° sharp point, special thread design, lubrication and corrosion resistant plating ensures the screw will consistently perform efficiently in hardwood, chipboard, MDF, plastic and thin sheet metal, whilst offering exceptional holding power.

Availability: In stock

£11.19

Qty:

i h

Overview
Contact Us

Product Code: 50080CLAF

Pack Type: Box

Pack Quantity: 200 Pieces

Barcode: 5055017507481

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
• Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

Product Specifications

Inner Thread Ø d1 (mm)	3.1
Head Type	Double Countersunk
Thread Type	Single Coarse 40°
MOQ	1
Point Type	25° Sharp with Single Slash
MOQ Increment	1
Substrates	Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
Pack Type	Box
Packs per Carton	16
Size (mm)	5.0 x 80
L (mm)	80
Material	Carbon Steel
Thread L (mm)	70
Corrosion Rating (1-5)	2 - Occasionally damp/wet, rural and sheltered areas
Finish	Zinc & Yellow
Driver Bit Size	PZ2
Thread Ø (mm)	5
Recess Type	Pozi
Lubrication	Gleitmo
Pack Qty	200
Feature 4	Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
Feature 2	Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
Feature 5	Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
Feature 3	40° deep single thread to provide a secure fixing with high pull-out resistance
Brand	TIMCO
Feature 6	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Feature 1	Double countersunk reduces the likelihood of head shear and assists completion of countersinking
Thread Coverage	Fully Threaded
