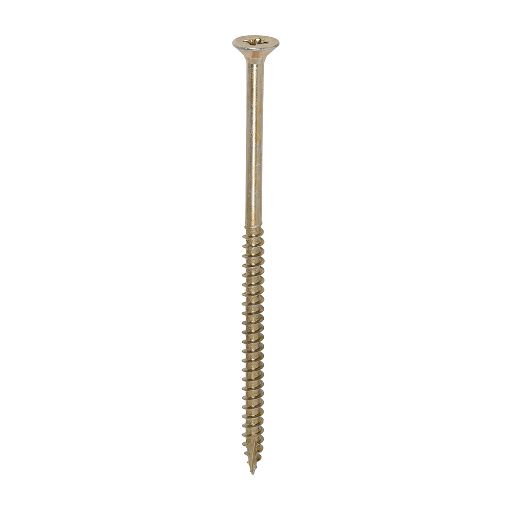

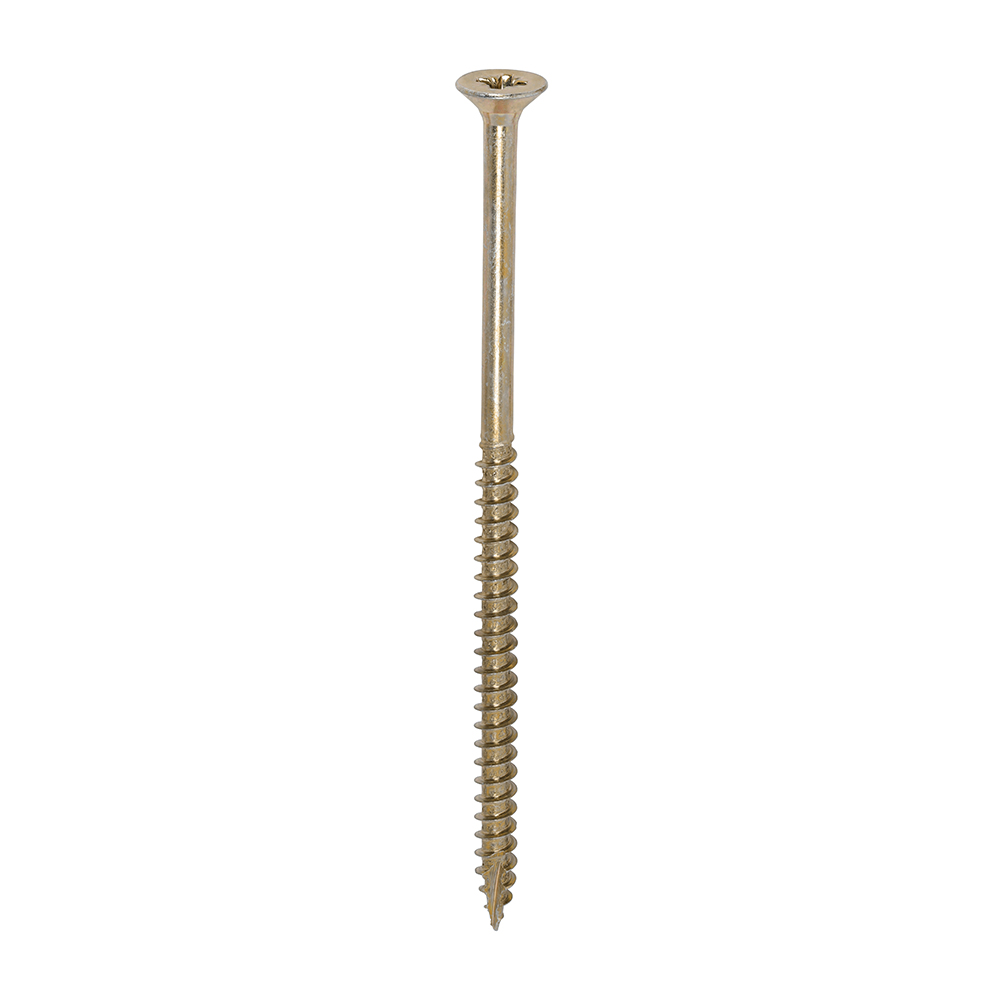

Classic Screw PZ3 CSK - ZYP 6.0 x 120 100 PCS

Pack Type: Box

Pack Quantity: 100 Pieces

Barcode: 5055017507603

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
• Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length

Product Specifications

Packs per Carton	16
Pack Type	Box
Thread Type	Single Coarse 40°
MOQ Increment	1
Inner Thread Ø d1 (mm)	3.8
L (mm)	120
Size (mm)	6.0 x 120
Point Type	25° Sharp with Single Slash
Substrates	Hardwood, Softwood, Chipboard, MDF, Plastic, Thin Sheet Metal
Lubrication	Gleitmo
MOQ	1
Head Type	Double Countersunk
Recess Type	Pozi
Corrosion Rating (1-5)	2 - Occasionally damp/wet, rural and sheltered areas
Thread Ø (mm)	6
Driver Bit Size	PZ3
Thread L (mm)	70
Pack Qty	100
Material	Carbon Steel
Finish	Zinc & Yellow
Feature 3	40° deep single thread to provide a secure fixing with high pull-out resistance
Feature 2	Patented lubrication, designed to enhance screw insertion time and provides greater resistance to corrosion
Feature 5	Single slash on 25mm+ to reduce torque and the likelihood of the timber splitting when the screw is inserted close to the edge
Feature 4	Surface hardened up to 750 HV to prevent torque shearing under load and a core hardness of up to 450 HV for improved ductility
Feature 6	All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Feature 1	Double countersunk reduces the likelihood of head shear and assists completion of countersinking
Brand	TIMCO
Thread Coverage	Partially Threaded
