    Flexseal 160mm Bandseal Adaptor Coupler AC6000 ( 160 / 180mm - 180 / 200 )

    SKU: CSS05-00054

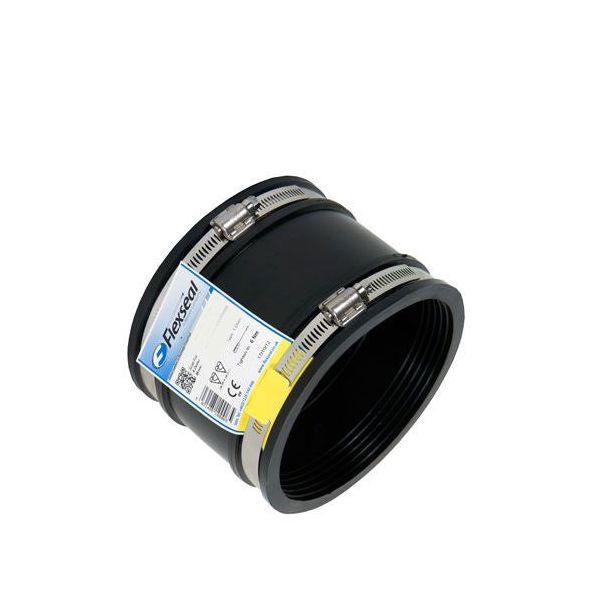

    Flexseal Adaptor Couplings are manufactured to meet and exceed the changing requirements of the drainage marketplace. Adaptor Couplings provide a solution to connecting pipes of different outside diameters. The coupling is a stepped moulded EPDM sleeve that has different diameters at each end. The sleeve is fitted with two 1.4301 (304) stainless steel clamping bands.
    £19.20
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Flexseal Adaptor Couplings are manufactured to meet and exceed the changing requirements of the drainage marketplace. Adaptor Couplings provide a solution to connecting pipes of different outside diameters. The coupling is a stepped moulded EPDM sleeve that has different diameters at each end. The sleeve is fitted with two 1.4301 (304) stainless steel clamping bands.

    Adaptor Couplings can also be used to connect all traditional and new pipe systems including structural walled plastic pipes where pipes of different diameters are to be conjoined.

    Flexseal can also supply the product with nitrile sleeves for use with effluent which may be contaminated with hydrocarbons. Couplings are also available with Grade 1.4401 (316) stainless steel for improved corrosion protection.

    Like all Adaptor Couplings, Flexseal Adaptor Couplings do not meet with WIS-4-41-01 specifications. For WIS-4-41-01 applications a Flexseal Standard Coupling (SC) and a Bush (BC) should be used.



    Benefits
    • Provides a quick and efficient method of connecting pipes of different materials and outside diameters
    • Lower cost alternative to using Bushes
    • Suitable for use on any pipe material



    Product specification for AC

    Product Code   AC
     Description Flexseal Adaptor Coupling
     Material EPDM Rubber / Nitrile Rubber
    Steel 1.4301 (304) Stainless Steel or
    1.4401 (316) Stainless Steel
    Pressure Rating 0.6bar, 8.70psi / -0.3 Vacuum
    Temperature Range -50°c to 150°c
    Tightening Torque AC633 - AC2756 - 6Nm
    AC9001 – AC4209 - 13Nm
    Standards EN295-4, EN681-1, CE
    Jetting Resistance 120 bar



    Product Range

    Reference
    No.
    A
    (mm)
    B
    (mm)
    Width
    (mm)
    AC6000 180 - 200 160 - 180 150
    *
    *
    *
    *
