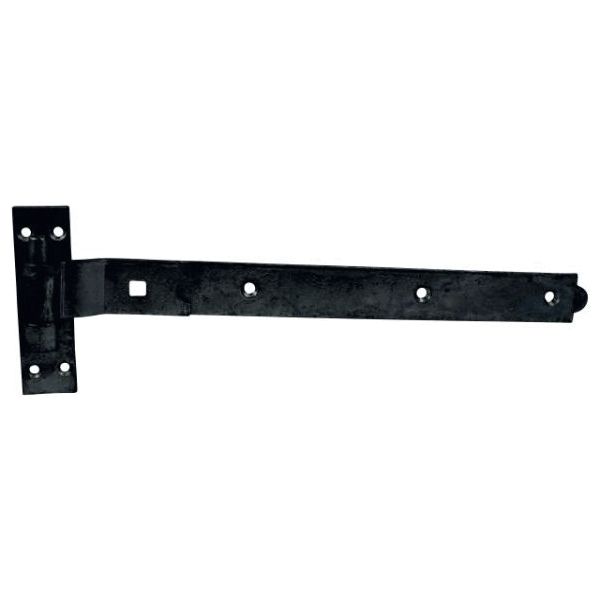

    Hook-Band Cranked Black 450mm 2 PCS

    SKU: CSS6192-4556
    The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
    Availability: In stock
    £17.42
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Product Code: HBC450B
    Pack Type: Plain Bag
    Pack Quantity: 2 Pieces


    Product Specifications

    Corrosion Rating (1-5) 2 - Occasionally damp/wet, rural and sheltered areas
    Material Carbon Steel
    Pin Ø (inch) 58
    Washer Size (mm) M10
    Pin Ø (mm) 16
    Number of Bolt Holes 2
    Pack Type Plain Bag
    Nut Type Hex Full
    Band W (mm) 50
    No. Of CSK Screws 14
    Band L (inch) 18
    Number of Screw Holes 14
    Included Items M10 x 100mm Carriage Bolts (Qty 2)
    M10 Hex Full Nuts (Qty 2)
    M10 Form A Washers (Qty 2)
    6.0 x 40mm Countersunk Screws (Qty 14)
    Washer Type Form A
    Pack Qty 2
    MOQ Increment 1
    Pack Weight (kg) 2.9
    Packs per Carton 5 Pairs
    No. of Nuts 2
    Hook Plate Size L x W (mm) 160 x 50
    Finish Epoxy Black
    To Suit Gate W (mm) 900 - 1350
    Band L (mm) 450
    No. of Carriage Bolts 2
    Carriage Bolt Size (mm) M10 x 100
    Nut Size (mm) M10
    CSK Screw Size (mm) 6.0 x 40
    To Fit Carriage Bolt Ø (mm) M10
    Pack Dimensions L x W x H (mm) 160 x 30 x 590
    MOQ 1
    No. of Washers 2
    Type Cranked
    Band T (mm) 4.8
    Brand TIMCO
    *
    *
    *
    *
