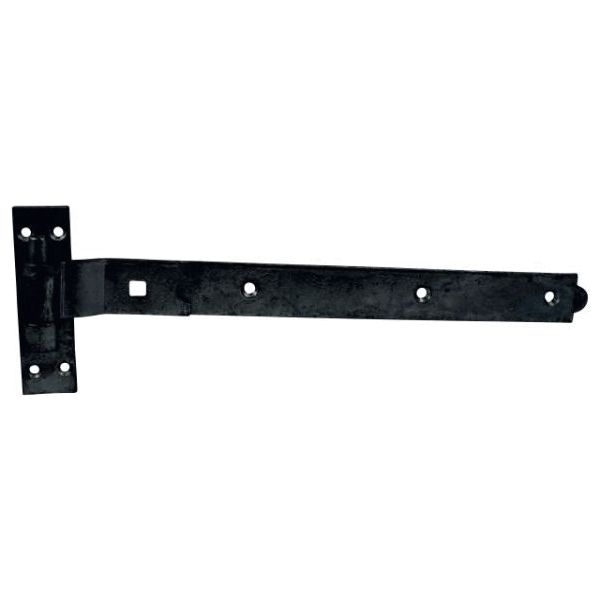

    Hook-Band Cranked Black 600mm 2 PCS

    SKU: CSS67-04539
    The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
    Availability: In stock
    £24.29
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Product Specifications

    Number of Bolt Holes 2
    Band L (mm) 600
    Washer Size (mm) M10
    Finish Epoxy Black
    Pack Weight (kg) 4.12
    Type Cranked
    Hook Plate Size L x W (mm) 160 x 50
    Pack Type Plain Bag
    Number of Screw Holes 14
    No. of Nuts 2
    Band L (inch) 24
    Washer Type Form A
    Pin Ø (inch) 58
    Material Carbon Steel
    Corrosion Rating (1-5) 2 - Occasionally damp/wet, rural and sheltered areas
    Pin Ø (mm) 16
    Pack Qty 2
    Packs per Carton 5 Pairs
    Band W (mm) 50
    MOQ Increment 1
    Pack Dimensions L x W x H (mm) 150 x 30 x 765
    No. Of CSK Screws 14
    Carriage Bolt Size (mm) M10 x 100
    MOQ 1
    CSK Screw Size (mm) 6.0 x 40
    Nut Size (mm) M10
    No. of Carriage Bolts 2
    To Suit Gate W (mm) 1200 - 1800
    Nut Type Hex Full
    No. of Washers 2
    Band T (mm) 5.4
    To Fit Carriage Bolt Ø (mm) M10
    Included Items M10 x 100mm Carriage Bolts (Qty 2)
    M10 Hex Full Nuts (Qty 2)
    M10 Form A Washers (Qty 2)
    6.0 x 40mm Countersunk Screws (Qty 14)
    Brand TIMCO
    *
    *
    *
    *
