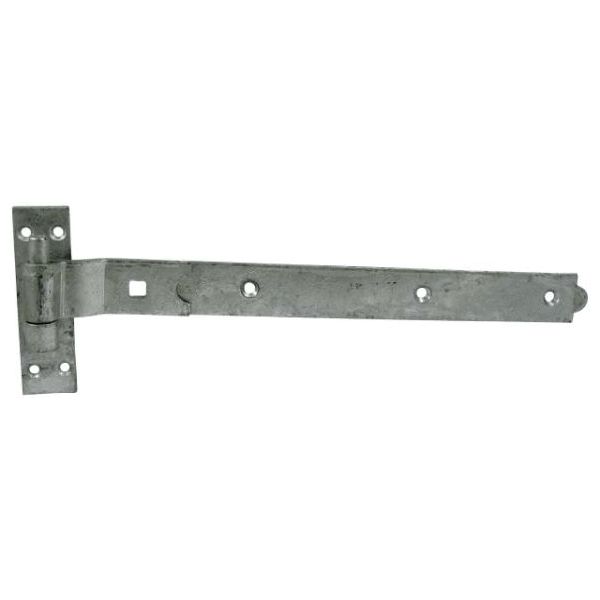

    Hook-Band Cranked Galv 450mm 2 PCS

    SKU: CSS67-04528
    The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
    Availability: In stock
    £17.42
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Product Specifications

    Number of Bolt Holes 2
    Washer Size (mm) M10
    Hook Plate Size L x W (mm) 160 x 50
    Pack Type Plain Bag
    Pack Dimensions L x W x H (mm) 160 x 30 x 590
    To Suit Gate W (mm) 900 - 1350
    Number of Screw Holes 14
    Pack Weight (kg) 2.97
    Washer Type Form A
    Band L (inch) 18
    Pin Ø (mm) 16
    Finish Hot Dipped Galvanised
    No. of Nuts 2
    Pack Qty 2
    Packs per Carton 5 Pairs
    Type Cranked
    MOQ Increment 1
    No. Of CSK Screws 14
    Band W (mm) 50
    Carriage Bolt Size (mm) M10 x 100
    MOQ 1
    Material Carbon Steel
    Included Items M10 x 100mm Carriage Bolts (Qty 2)
    M10 Hex Full Nuts (Qty 2)
    M10 Form A Washers (Qty 2)
    6.0 x 40mm Countersunk Screws (Qty 14)
    Band L (mm) 450
    Nut Size (mm) M10
    No. of Carriage Bolts 2
    Band T (mm) 4.8
    Corrosion Rating (1-5) 4 - Urban & industrial areas with a moderate salt atmosphere
    CSK Screw Size (mm) 6.0 x 40
    Pin Ø (inch) 58
    Nut Type Hex Full
    No. of Washers 2
    To Fit Carriage Bolt Ø (mm) M10
    Brand TIMCO
    *
    *
    *
    *
