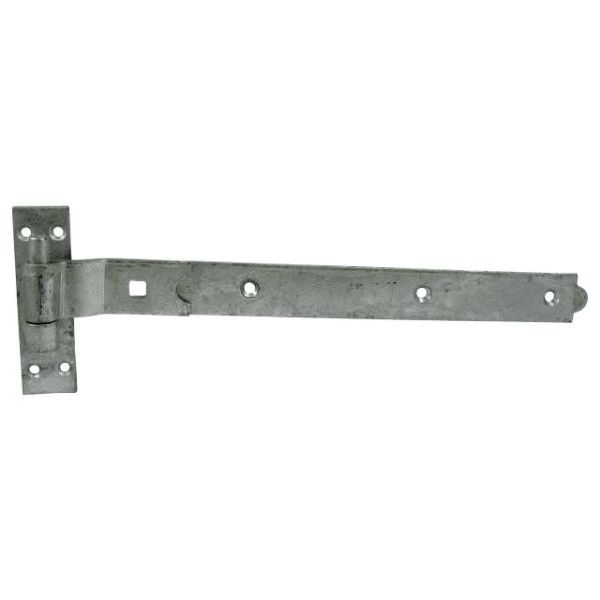

    Hook-Band Cranked Galv 600mm 2 PCS

    SKU: CSS67-04530
    The cranked pattern hook and band hinges are for hanging the door or gate flush with the frame or post. They are ideal for heavy weight, high use doors, gates, garages and stables in domestic and agricultural applications. Depending on the weight distribution of the gate, the top or bottom pin can be mounted upside down to prevent unwanted removal of the gate. NOTE: Doors/gates over 2130mm / 7ft height, should be fitted with a third hinge to pre
    Availability: In stock
    €28.18
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Product Specifications

    Hook Plate Size L x W (mm) 160 x 50
    Nut Type Hex Full
    Washer Type Form A
    Type Cranked
    Number of Screw Holes 14
    Corrosion Rating (1-5) 4 - Urban & industrial areas with a moderate salt atmosphere
    Included Items M10 x 100mm Carriage Bolts (Qty 2)
    M10 Hex Full Nuts (Qty 2)
    M10 Form A Washers (Qty 2)
    6.0 x 40mm Countersunk Screws (Qty 14)
    CSK Screw Size (mm) 6.0 x 40
    Number of Bolt Holes 2
    No. of Nuts 2
    Band L (mm) 600
    Packs per Carton 5 Pairs
    Pin Ø (inch) 58
    MOQ Increment 1
    Washer Size (mm) M10
    Material Carbon Steel
    Carriage Bolt Size (mm) M10 x 100
    MOQ 1
    No. of Carriage Bolts 2
    To Suit Gate W (mm) 1200 - 1800
    Nut Size (mm) M10
    Finish Hot Dipped Galvanised
    Pack Qty 2
    Pack Type Plain Bag
    Band L (inch) 24
    No. of Washers 2
    Band T (mm) 5.4
    To Fit Carriage Bolt Ø (mm) M10
    Pack Dimensions L x W x H (mm) 178 x 30 x 610
    Pin Ø (mm) 16
    Pack Weight (kg) 3.96
    No. Of CSK Screws 14
    Band W (mm) 50
    Brand TIMCO
    *
    *
    *
    *
