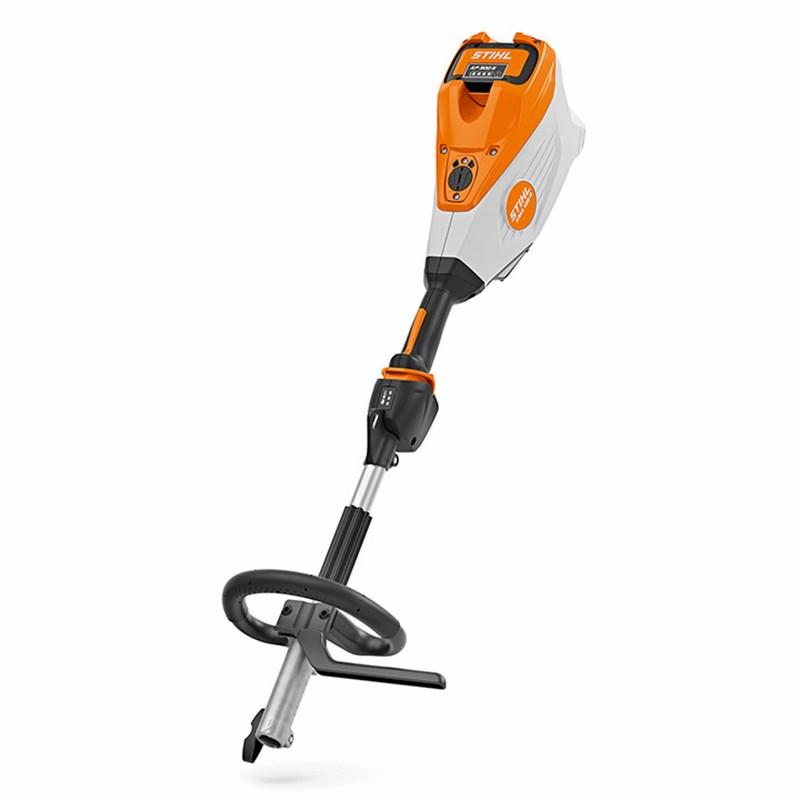

    Stihl KMA 135 R KombiMotor Shell

    Manufacturer: Stihl Gb
    SKU: CSS0116-00041
    Robust and powerful cordless KombiEngine with an AP battery slot. For working in noise sensitive environments. Versatile use due to wide range of STIHL KombiTools. Suitable for use with: FS-KM mowing head, MB-KM brushcutter head, HL-KM 145° long reach hedge trimmer, HT-KM pole pruner, BG-KM blower. Requires: recommended AP 300 S battery and AL 500 charger, for operation.
    Availability: In stock
    i h
    Ship to
    Shipping Method
    Estimated Delivery
    No shipping options

    Stihl KMA 135 R KombiMotor Shell Specification

    Requires the appropriate AP System 36V li-ion battery and charger.
    Working time with recommended AP 300 S battery is up to 41-229 minutes.

    Rated voltage: 36V.
    Length to coupling: 96cm.
    Vibration level left/right: 5.0 / 3.7 (m/s2).
    Noise level: 104 dB(A).
    Weight: 3.4 kgs.
    Supplied with shoulder harness.


    Features an ergonomic control handle with three-level speed pre-selection and LED display as well as infinitely variable speed control, loop handle, and air filter for long service life. Mounting point for the STIHL Smart Connector 2 A on the power tool housing.

    NOTE: The KMA 135 R cannot be used with the FSB-KM curved shaft grass trimmer.

    STIHL EC-Engine
    The STIHL brushless electric motor (EC) is very energy efficient and practically maintenance free. Thanks to its outstanding efficiency, the battery power is directly translated into impressive performance. During operation, the electronically controlled EC motor permanently monitors the load and adjusts the engine accordingly.

    Battery slot
    AP batteries can be inserted directly into the battery slot. This will make your work even more mobile and flexible.

    Ergonomic control handle with speed adjustment
    The speed can be controlled in three stages using the ergonomic control handle, which has a built-in LED display. This ensures energy-efficient work and longer running times.

    Quick-release coupling
    The quick-release coupling allows the KombiSystem to be quickly dismantled into two parts for easy transport and storage – and then re-assembled quickly without tools.

    Loop handle
    The loop handled grass trimmers and brushcutters are ideal for working in areas where space is limited, e.g. thinning between bushes and shrubs.
