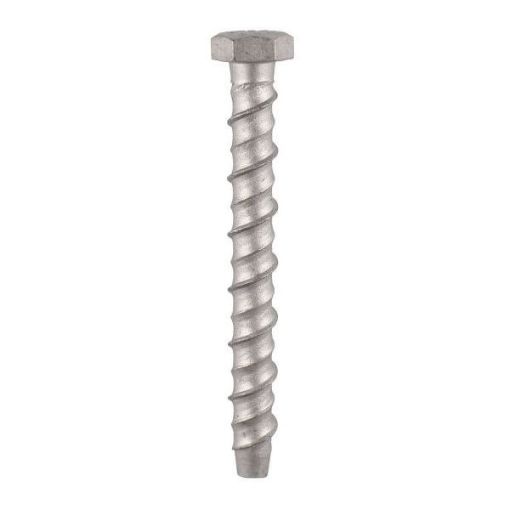

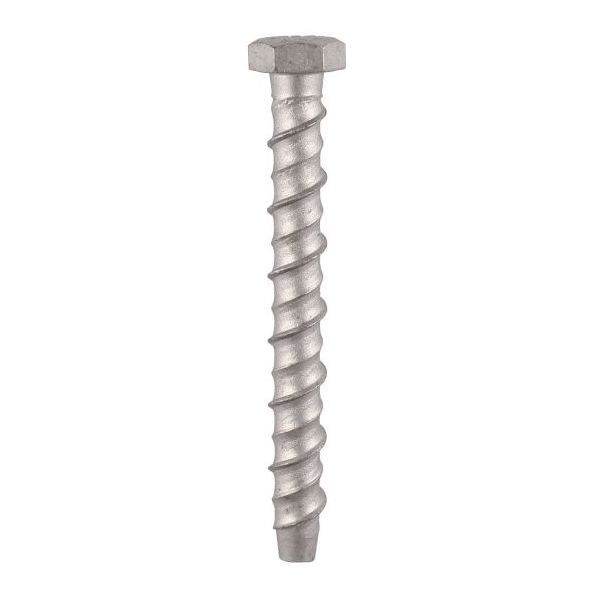

Multi-Fix Bolt HEX HEAD 10 x 100/M12 50 PCS Thunderbolt

Manufacturer: T.I.Midwood & Co Ltd

SKU: CSS67-02023

This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors.

Availability: In stock

£38.51

Qty:

i h

Overview
Contact Us
Shipping Info

Product Code: MF10100

Pack Type: Box

Pack Quantity: 50 Pieces

• Designed to replace traditional expansion anchors
• TIMCO micro plating technology gives a higher resistance to corrosion and enhances speed of installation
• High-Low parallel threads for ease of insertion and high pull-out values
• Removable & adjustable non-expansion through fixing
• Unique concave thread configuration
• All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.

Product Specifications

MOQ	1
Finish	Exterior (Silver Organic)
Thread Type	High-Low Parallel
Fixture Hole Size Ø (mm)	12
MOQ Increment	1
MFT (mm)	50
Pack Type	Box
Point Type	Chamfered
Substrates	Wood, Concrete, Brick, Block, Stone
Corrosion Rating (1-5)	3 - Urban & industrial areas with a low salt atmosphere
Size Ø x L (mm)	10.0 x 100
Pack Qty	50
Socket Size (mm)	17
Drill Hole Ø (mm)	10
Head Type	Hex
Feature 6	All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Feature 5	Unique concave thread configuration
Brand	TIMCO
Thread Coverage	Fully Threaded
Packs per Carton	4
Pack Weight (kg)	3.54
Pack Dimensions L x W x H (mm)	162 x 140 x 84

TECHNICAL DATA

Concrete ≥25N/mm²
Drill Hole Ø (mm)	10.0
Min. Embed. Depth (mm)	50
Min. Drill Hole Depth (mm)	70
Deeper Embed. Depth (mm)	75
Rec. Tensile Load (kg) - Min. Embed. Depth	5.49
Rec. Tensile Load (kg) - Deeper Embed. Depth	12.21
Min. Over-Drill for Dust (mm)	20
Min. Centre Spacing (mm)	150
Min. Edge Distance (mm)	75
Min. Structure Thickness (mm)	110
Max. Rec. Load (kg) - Min. Embed. Depth	549
Max. Rec. Load (kg) - Deeper Embed. Depth	1221
Fletton Brick 30N/mm²
Drill Hole Ø (mm)	10
Min. Embed. Depth (mm)	50
Min. Drill Hole Depth (mm)	70
Rec. Tensile Load (kN)	3.18
Max. Rec. Load (kg)	318
Min. Over-Drill for Dust (mm)	20
Min. Centre Spacing (mm)	-
Min. Edge Distance (mm)	-
Min. Structure Thickness (mm)	-
Cheshire Brick 45N/mm²
Drill Hole Ø (mm)	10.0
Min. Embed. Depth (mm)	50
Min. Drill Hole Depth (mm)	70
Rec. Tensile Load (kN)	3.26
Max. Rec. Load (kg)	326
Min. Over-Drill for Dust (mm)	20
Min. Centre Spacing (mm)	-
Min. Edge Distance (mm)	-
Min. Structure Thickness (mm)	-
Class B Eng. Brick 75N/mm²
Min. Embed. Depth (mm)	50
Min. Drill Hole Depth (mm)	70
Rec. Tensile Load (kN)	-
Max. Rec. Load (kg)	-
Min. Over-Drill for Dust (mm)	20
Min. Centre Spacing (mm)	-
Min. Edge Distance (mm)	-
Min. Structure Thickness (mm)	-
Class B Eng. Brick 75N/mm2
Drill Hole Ø (mm)	10.0
