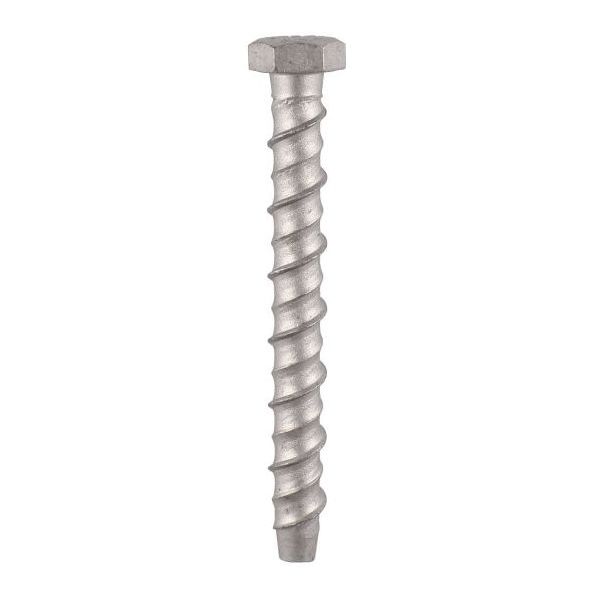

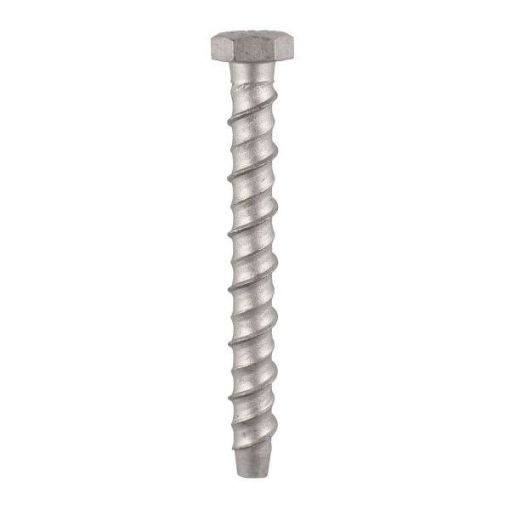

    Multi Fix Bolt HEX HEAD 12 x 100 / M14 (25)

    SKU: CSS67-02027
    This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors.
    Availability: In stock
    £23.56
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Product Code: MF12100
    Pack Type: Box
    Pack Quantity: 25 Pieces

    • Designed to replace traditional expansion anchors
    • TIMCO micro plating technology gives a higher resistance to corrosion and enhances speed of installation
    • High-Low parallel threads for ease of insertion and high pull-out values
    • Removable & adjustable non-expansion through fixing
    • Unique concave thread configuration
    • All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.


    Product Specifications

    Head Type Hex
    Substrates Wood, Concrete, Brick, Block, Stone
    Size Ø x L (mm) 12.0 x 100
    Pack Weight (kg) 2.534
    Drill Hole Ø (mm) 12
    Pack Type Box
    MOQ 1
    Finish Exterior (Silver Organic)
    Pack Qty 25
    Packs per Carton 8
    Fixture Hole Size Ø (mm) 14
    Pack Dimensions L x W x H (mm) 142 x 94 x 86
    MFT (mm) 40
    MOQ Increment 1
    Point Type Chamfered
    Thread Type High-Low Parallel
    Socket Size (mm) 19
    Corrosion Rating (1-5) 3 - Urban & industrial areas with a low salt atmosphere
    Feature 6 All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
    Brand TIMCO
    Feature 5 Unique concave thread configuration
    Thread Coverage Fully Threaded



    TECHNICAL DATA

    Concrete ≥25N/mm2
    Drill Hole Ø (mm) 12.0
    Min. Embed. Depth (mm) 60
    Min. Drill Hole Depth (mm) 85
    Deeper Embed. Depth (mm) 85
    Rec. Tensile Load (kg) - Min. Embed. Depth 8.97
    Rec. Tensile Load (kg) - Deeper Embed. Depth 13.00
    Min. Over-Drill for Dust (mm) 25
    Min. Centre Spacing (mm) 180
    Min. Edge Distance (mm) 90
    Min. Structure Thickness (mm) 125
    Max. Rec. Load (kg) - Min. Embed. Depth 897
    Max. Rec. Load (kg) - Deeper Embed. Depth 1300
    Fletton Brick 30N/mm2
    Min. Centre Spacing (mm) -
    Min. Edge Distance (mm) -
    Min. Structure Thickness (mm) -
    Cheshire Brick 45N/mm2
    Min. Centre Spacing (mm) -
    Min. Edge Distance (mm) -
    Min. Structure Thickness (mm) -
    Class B Eng. Brick 75N/mm2
    Min. Centre Spacing (mm) -
    Min. Edge Distance (mm) -
    Min. Structure Thickness (mm) -
    *
    *
    *
    *
