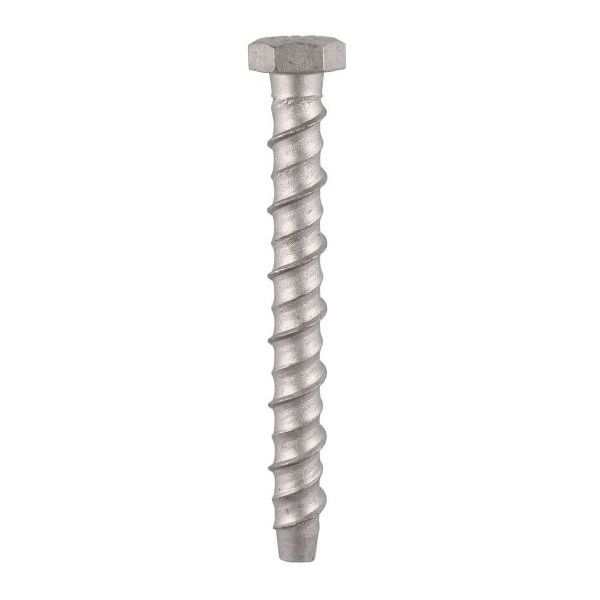

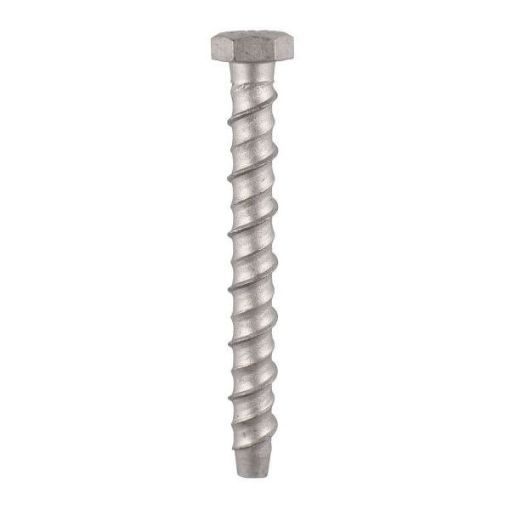

Multi Fix Bolt HEX HEAD 12 x 150 / M14 25 PCS

Manufacturers: T.I.Midwood & Co Ltd , T.I.Midwood & Co Ltd

SKU: CSS6192-2048

This stress free, non-expansion through fixing is the new solution for heavy duty anchoring into concrete, brick, stone, wood and concrete block replacing the need for traditional anchors such as throughbolts, shield, sleeve and drop-in anchors.

Availability: In stock

£46.02

Qty:

i h

Overview
Contact Us

Product Code: MF12150

Pack Type: Box

Pack Quantity: 25 Pieces

• Designed to replace traditional expansion anchors
• TIMCO micro plating technology gives a higher resistance to corrosion and enhances speed of installation
• High-Low parallel threads for ease of insertion and high pull-out values
• Removable & adjustable non-expansion through fixing
• Unique concave thread configuration
• All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.

Product Specifications

Head Type	Hex
Fixture Hole Size Ø (mm)	14
Drill Hole Ø (mm)	12
Finish	Exterior (Silver Organic)
MOQ	1
Thread Type	High-Low Parallel
Size Ø x L (mm)	12.0 x 150
MFT (mm)	90
Socket Size (mm)	19
Packs per Carton	6
Point Type	Chamfered
Corrosion Rating (1-5)	3 - Urban & industrial areas with a low salt atmosphere
Pack Qty	25
MOQ Increment	1
Pack Type	Box
Substrates	Wood, Concrete, Brick, Block, Stone
Feature 6	All steel, non-flammable fixing conforming to BS 7671 standard's 18th edition, which requires wiring systems to be supported by materials which are unlikely to prematurely collapse in the event of a fire.
Feature 5	Unique concave thread configuration
Brand	TIMCO
Thread Coverage	Partially Threaded
Pack Dimensions L x W x H (mm)	192 x 94 x 88
Pack Weight (kg)	3.56

TECHNICAL DATA

Concrete ≥25N/mm²
Drill Hole Ø (mm)	12.0
Min. Embed. Depth (mm)	60
Min. Drill Hole Depth (mm)	85
Deeper Embed. Depth (mm)	85
Rec. Tensile Load (kg) - Min. Embed. Depth	8.97
Rec. Tensile Load (kg) - Deeper Embed. Depth	13.00
Min. Over-Drill for Dust (mm)	25
Min. Centre Spacing (mm)	180
Min. Edge Distance (mm)	90
Min. Structure Thickness (mm)	125
Max. Rec. Load (kg) - Min. Embed. Depth	897
Max. Rec. Load (kg) - Deeper Embed. Depth	1300
