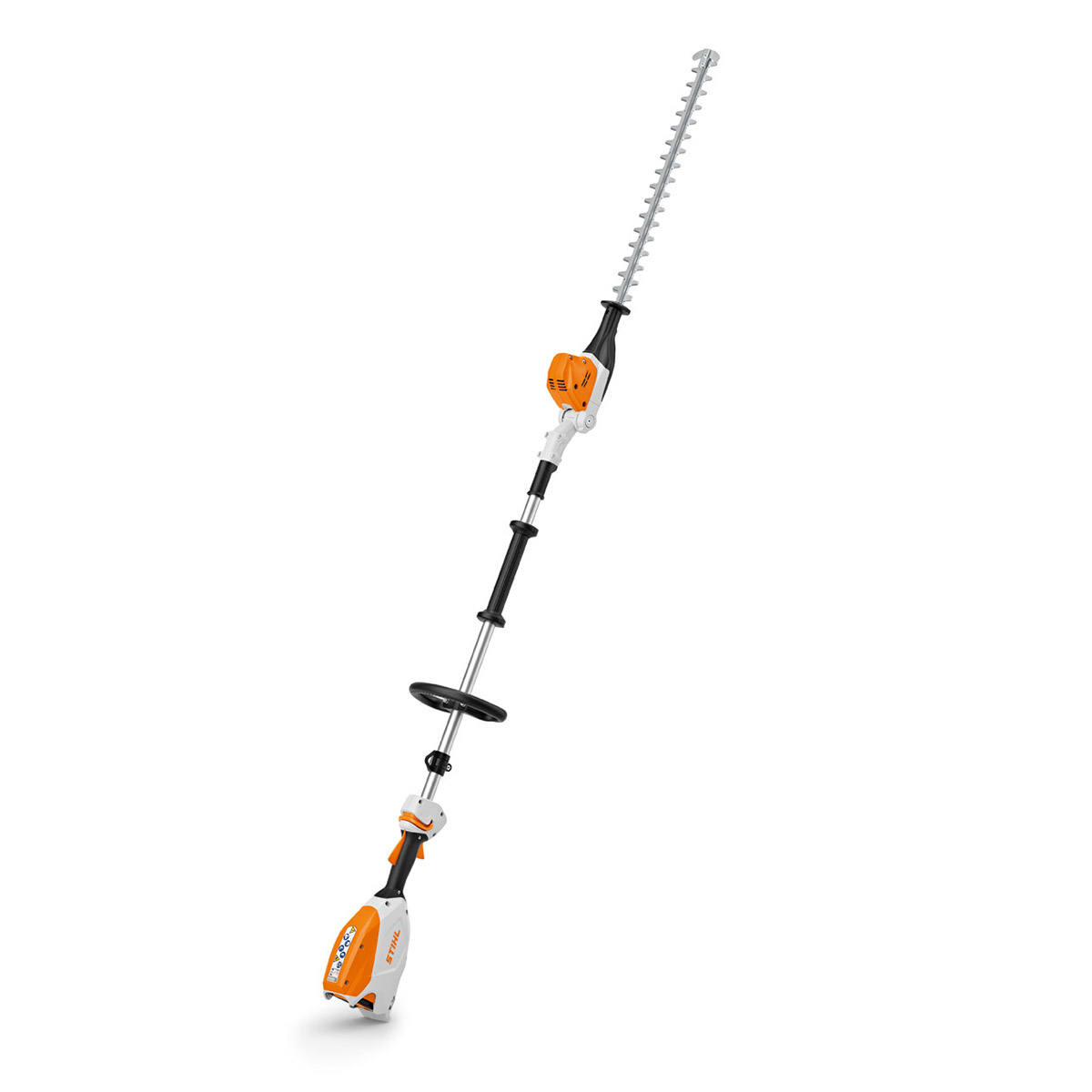

Stihl HLA 86 Cordless Hedge Trimmer ( SHELL ONLY )
The STIHL HLA 86 professional cordless hedge trimmer from the STIHL AP system is ideal for the efficient maintenance of tall hedges, shrubs and ground cover. The robust EC motor with infinitely variable speed delivers consistently high performance. The cutter bar can be adjusted by 115° for top, bottom or side cuts without tools. The cutter blade, ground on both sides, allows for an attractive, clean cut. The tool-free adjustable square telescopic shaft impresses with its high level of guide rigidity. The 260 – 330 cm long hedge trimmer has a very long reach and can be folded up to 180 cm for easier transport.
Standard Features
Telescopic Shaft with Rotatable Clamping Sleeve
With a practical square telescopic shaft, which can be extended from 2.6m to 3.3m, even high or wide hedges are no problem. The shaft length can be adjusted without tools using the rotatable clamping sleeve.
Perfectly Balanced
The battery in the shaft of the HLA enables balance during use and allows for fatigue-free work.
Intuitive Control Handle
The ergonomic operating handle has an intuitive start process and is easy to use for right and left hand users.
Double-Sided Cutting Plate
The double-sided cutting plate is ground on both sides and ensures a clean cutting pattern.
Quick-Adjustment System
The cutter bar can be adjusted from -45° to 70° and can be folded and locked parallel to the shaft for transport.
STIHL EC-Engine
The STIHL brushless electric motor (EC) is very energy efficient and practically maintenance free. Thanks to its outstanding efficiency, the battery power is directly translated into impressive performance. During operation, the electronically controlled EC motor permanently monitors the load and adjusts the engine accordingly.
Blade Guard
For protection of the blade and to allow safe, easy transport this cordless long reach hedge trimmer is equipped with a blade guard.
Tip Protector
Protects the tip of the hedge trimmer's cutting blade from wear and tear while working in contact with the ground.
| Technical data | Value |
|---|
| Battery life time AP 300 S min 1) | Up to 223 |
| Cordless technology | AP System |
| Total length cm | 0 |
| Blade length cm | 50 |
| Recommended battery | AP 200 |
| Weight kg 2) | 4.8 |
| Sound power level dB(A) 3) | 91 |
| Vibration value, right m/s2 4) | 1.6 |
| Vibration value, left m/s2 4) | 2.3 |
| Stroke rate rpm | 3.000 |
| Tooth spacing mm | 33 |
| cutting capacity mm | 26 |
| Battery life time AP 100 min 5) | up to 72 |
| Battery life time AP 200 min 5) | up to 144 |
| Battery life time AP 300 min 5) | up to 180 |
- With blade, with handle, without protection, without battery
- K-factor according to DIR 2006/42/EC = 2.5 dB (A)
- K-factor according to DIR 2006/42/EC = 2m / s ²
- Battery life times are approximate and may vary depending on application
