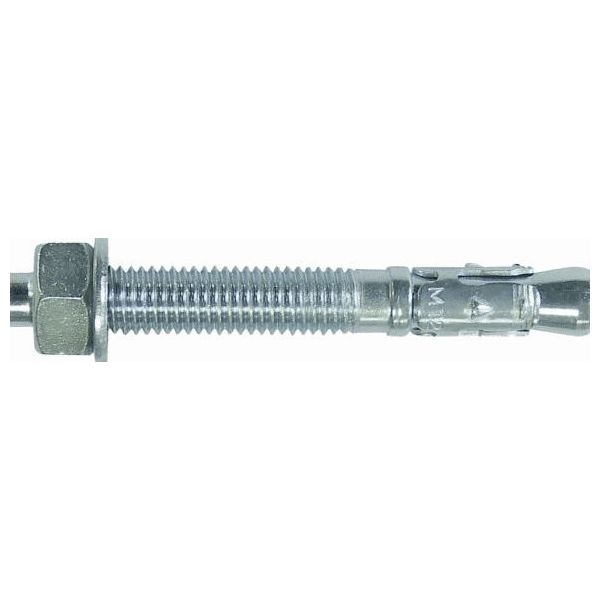

    TB1-PLUS 12/15x100 Through bolts zinc plated 50 pack 12/20x100

    Manufacturer: Sympafix BV
    SKU: CSS09-00024
    Galvanized through anchors / clickers for fast, reliable, approved, heavy-duty fixings in cracked and non-cracked concrete. With stainless steel expansion clip so that the part of the anchor where the load capacity is built up is not subject to corrosion. Placement depth marking on each anchor prevents incorrect installation. ETA approved for structural permanent attachments in both the tension and compression zones of concrete.
    i h
    Ship to
    Shipping Method
    Estimated Delivery
    No shipping options

    Product description

    • ETA-1 approval for use in cracked and non-cracked concrete
    • Also available in stainless steel A4 version
    • Continuous thread provides optimum flexibility in clamp thicknesses and applications
    • Guaranteed safe installation thanks to clear color marking of the required approved installation depth
    • Hardened stainless steel clip: the part of the anchor that ensures the load capacity is not subject to corrosion
    • Raised thread-free and tapered head guarantees anchor driving without damaging the thread / pitch
    • Rounded cone: self-aligning in the drill hole
    • Steep angle of inclination of the anchor cone ensures faster grip during installation
    • F120 fire approval
    • Fast constructive calculations possible with the free Sympafix DesignFix software

    Product data

    • Drill diameter: 12mm
    • Length: 100mm
    • max. clamp thickness / useful length / Tfix : 15 mm
    • Spanner width: 19 mm
    • Tightening torque: 70 Nm
    • Washer Diameter: 24mm
    • Length x width x height (box): 250x120x78 mm
    • Box content : 50 pcs
    • Outer box content: 200 pcs
    • Number of boxes per outer box : 4 pcs
    • Weight per box: 4800 grams
    • Base material: Cracked concrete (tension zone), Non-cracked concrete (compression zone)
    • ETA approvals and certifications: ETA for concrete, Seismic approval C1, Fire approval for 90 minutes, Fire approval for 120 minutes
    • Material / corrosion: Carbon steel galvanized
    • Product type: Through anchors
    • Head configuration: Male thread
