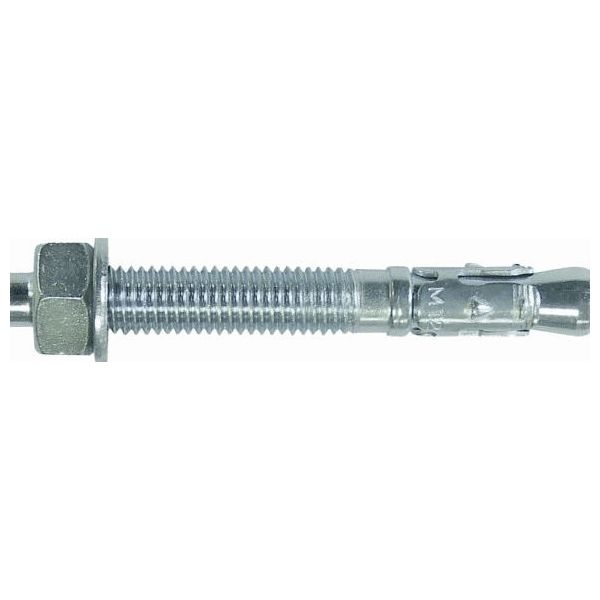

TB1-PLUS 8/75x130 Throughbolts zinc plated 50 pack 8/80x130

SKU: CSS6139-00025

Galvanized through anchors / clickers for fast, reliable, approved, heavy-duty fixings in cracked and non-cracked concrete. With stainless steel expansion clip so that the part of the anchor where the load capacity is built up is not subject to corrosion. Placement depth marking on each anchor prevents incorrect installation. ETA approved for structural permanent attachments in both the tension and compression zones of concrete.

Availability: In stock

£27.40

Qty:

i h

Overview
Contact Us

Product description

ETA-1 approval for use in cracked and non-cracked concrete
Also available in stainless steel A4 version
Continuous thread provides optimum flexibility in clamp thicknesses and applications
Guaranteed safe installation thanks to clear color marking of the required approved installation depth
Hardened stainless steel clip: the part of the anchor that ensures the load capacity is not subject to corrosion
Raised thread-free and tapered head guarantees anchor driving without damaging the thread / pitch
Rounded cone: self-aligning in the drill hole
Steep angle of inclination of the anchor cone ensures faster grip during installation
F120 fire approval
Fast constructive calculations possible with the free Sympafix DesignFix software

Product data

Drill diameter: 8mm
Length: 130mm
max. clamp thickness / useful length / Tfix : 75 mm
Spanner width: 13 mm
Tightening torque: 30 Nm
Washer Diameter: 16mm
Length x width x height (box): 250x120x78 mm
Box content : 50 pcs
Outer box content: 200 pcs
Number of boxes per outer box : 4 pcs
Weight per box: 2450 grams
Base material: Cracked concrete (tension zone), Non-cracked concrete (compression zone)
ETA approval and certifications: ETA for concrete, Fire approval for 90 minutes, Fire approval for 120 minutes
Material / corrosion: Carbon steel galvanized
Product type: Through anchors
Head configuration: Male thread
