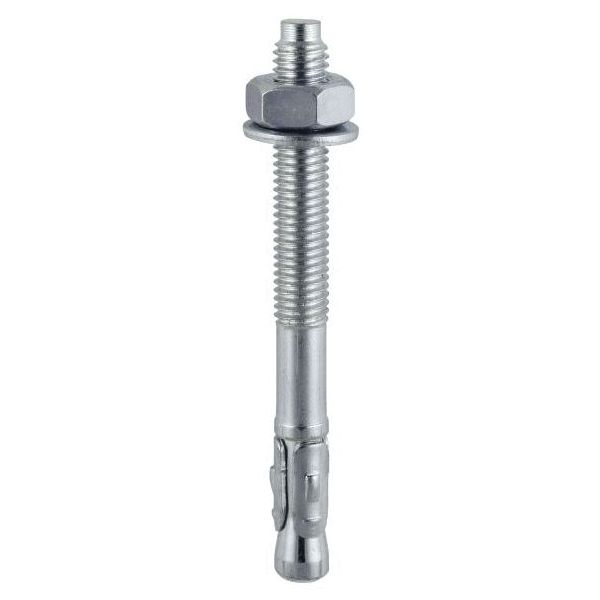

    Through Bolt - BZP 10 x 75 50 PCS

    SKU: CSS67-02079
    A versatile, torque controlled through fixing for use in a wide range of anchoring applications into concrete. Complete with hex full nut and washer. NOTE: If no torque wrench is available, tighten the nut 3 to 4 full turns from finger tight.
    Availability: In stock
    €28.06
    i h
    Ship to
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Product Code: 1075TB
    Pack Type: Box
    Pack Quantity: 50 Pieces

    • Chamfered head design to prevent damage to thread during installation
    • Zinc plated and passivated (3-5 microns)
    • Manufactured from cold formed carbon steel (grade 5.8)
    • Special expansion clip for rapid installation


    Product Specifications

    Material Carbon Steel
    Corrosion Rating (1-5) 1 - Clean, dry & low humidity environments
    Nut Size (mm) M10
    MOQ Increment 1
    Substrates Concrete
    Pack Qty 50
    Fixture Hole Size Ø (mm) 12
    MOQ 1
    Thread Ø x L (mm) M10 x 75
    Washer Type Form A
    Pack Type Box
    DIN DIN 125-A, DIN 934
    Thread Type Metric
    Packs per Pallet 162
    Packs per Carton 6
    Pack Weight (kg) 2.584
    Washer Size (mm) M10 x 21
    Head Type Chamfered
    Nut Socket Size (mm) 17
    Pack Dimensions L x W x H (mm) 162 x 140 x 84
    MFT (mm) 10
    Finish Zinc
    Nut Type Hex Full
    Included Items M10 Hex Full Nuts & Form A Washers
    Thread Ø (mm) M10
    Pallet Qty (pcs) 8100
    Feature 1 Chamfered head design to prevent damage to thread during installation
    Feature 2 Zinc plated and passivated (3-5 microns)
    Brand TIMCO
    Feature 3 Manufactured from cold formed carbon steel (grade 5.8)
    Feature 4 Special expansion clip for rapid installation
    Thread Coverage Fully Threaded



    TECHNICAL DATA

    Concrete ≥25N/mm2
    Drill Hole Ø (mm) 10.0
    Min. Embed. Depth (mm) 45
    Min. Drill Hole Depth (mm) 50
    Rec. Tensile Load (kN) 4.11
    Max. Rec. Load (kg) 411
    Min. Centre Spacing (mm) 140
    Min. Edge Distance (mm) 70
    Min. Structure Thickness (mm) 90
    Concrete 25N/mm2
    Rec. Tightening Torque (Nm) 30
    *
    *
    *
    *
