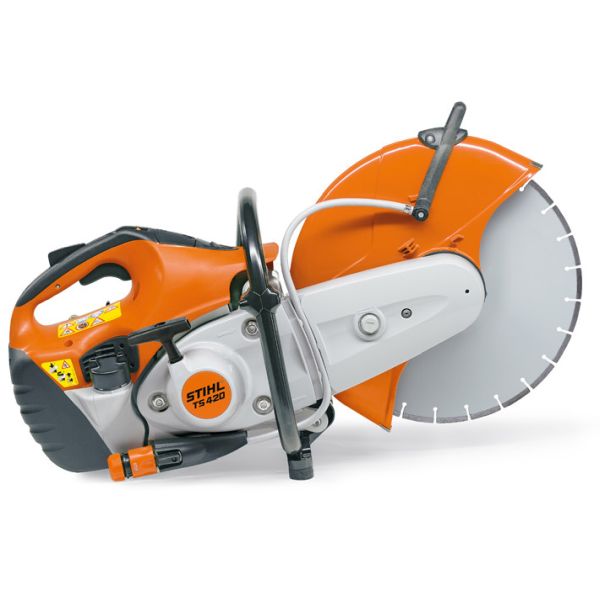

Introducing Stihl TS 420 35cm/14" Petrol Cut-off saw, the high-performance cut-off machine, equipped with a long-life filter system featuring cyclone pre-separation that eliminates the need for on-site maintenance. Experience exceptional comfort with extremely low vibration levels measuring at just 3.9m/s². The high-performance engine, enhanced with a stratified charge system, delivers optimal power and efficiency. Its compact design and optimized balance ensure excellent cutting precision and guide characteristics. Designed for use with a 350mm cutting wheel, this machine is built to handle demanding tasks. Additional features include ElastoStart, primer pump, and decompression valve for smooth starting, as well as a convenient bayonet filler cap for tool-free opening. Whether used handheld or with the FW 20 cart, this versatile machine offers convenience and mobility. It comes supplied with an abrasive cutting wheel, ready to tackle your cutting needs with ease.
Technical specification for Stihl TS 420 35cm/14" Petrol Cut-off saw |
Value |
Capacity cm3 |
66.7 |
Weight 1) |
9.75 |
Performance kW |
3.2 |
Tank volume l |
0.71 |
Sound pressure level dB(A) 2) |
98 |
Power output kW/bhp |
3.2/4.4 |
Weight kg 3) |
9.6 |
Sound pressure level dB(A) 4) |
98.0 |
Sound power level dB(A) 4) |
109.0 |
Vibration levels left/right m/s² 5) |
3.9/3.9 |
Cutting wheel mm/in |
35 cm / 14" |
Sound power level dB(A) 2) |
109 |
EPA Certified fuel consumption l/h |
2.048 |
Vibration value, left m/s2 6) |
3.9 |
Vibration value, right m/s2 6) |
3.9 |
CO² g/kWh |
747 |
