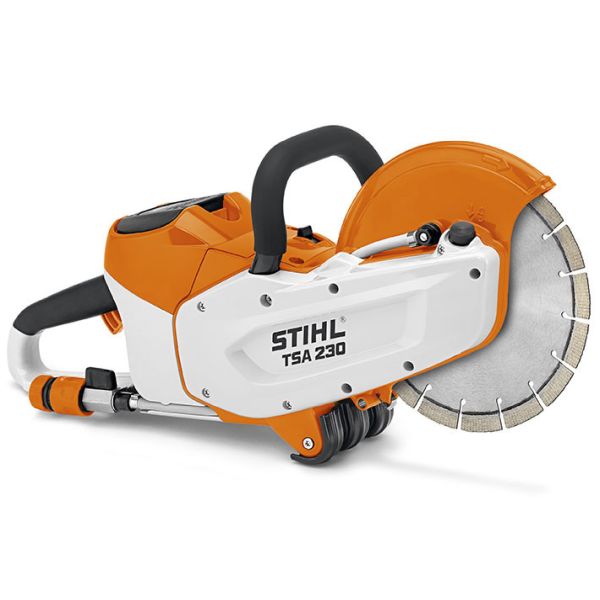

Stihl TSA 230 23cm/9" Cut-Off Saw Shell

Manufacturer: Stihl Gb

SKU: CSS0116-00007

MPN: 4864-011-6620

The STIHL EC Motor is a low-maintenance, energy-efficient power source with a long service life, paired with an ergonomic handle for precise control, a lightweight magnesium guard for safety, and a spindle lock for quick wheel changes. It also features a built-in water connection for dust suppression and cooling.

Availability: In stock

£570.72

Qty:

i h

Overview
Contact Us

Key Features

EC Motor: High-efficiency, compact, and low-maintenance motor with long service life.
Ergonomic Handle: Curved design for precise control and comfortable operation.
Magnesium Guard: Lightweight and robust cutting wheel guard for protection against debris and cooling water spray.
Spindle Lock Mechanism: Quick and easy cutting wheel changes.
Low-Maintenance Motor Technology: Enclosed control unit and maintenance-free belt drive for increased durability.
Water Connection: Integrated water supply for effective dust binding and cutting wheel cooling.

Technical Data

Rated voltage	36 V
Power	1.6 kW ¹⁾
Battery system	AP
Recommended battery	AP 300 S
Device weight without battery	3.9 kg ²⁾
Cutting disc diameter	230 mm
Max. cutting depth	70 mm
Max. battery working time AP 200	18 min ³⁾
Max. battery working time AP 200 S	18 min ³⁾
Max. battery working time AP 300	16 min ³⁾
Max. battery working time AP 300 S	20 min ³⁾
Device length with cutting disc	55 cm
Sound pressure level	104 dB(A) ⁴⁾
Sound power level	115 dB(A) ⁵⁾
Vibration level, left	4.3 m/s²
Vibration level, right	2.4 m/s²
